UN R66 Bus Rollover Strength, and the Classes Left Out

The most consequential sentence in UN Regulation No. 66 is its first one, and most of what it does is exclude. Paragraph 1.1: “This Regulation applies to single-deck rigid or articulated vehicles belonging to categories M2 or M3, Classes II or III or class B having more than 16 passengers.” No later paragraph widens that reach by default. Class I is not in it. Class A is not in it. No double-decker is in it. They are outside not because the Regulation exempts them — there is no exemption paragraph — but because the scope sentence never names them. That is a statement about classes, and a class is not the same thing as a kind of bus: one vehicle can correspond to two classes at once, which is where the exclusion stops being a statement about city buses. The section below sets out what that does to it.

Paragraph numbers below follow the text at Official Journal L 84 of 30 March 2011 — all valid text up to the 02 series of amendments, in force since 19 August 2010. EUR-Lex records that publication as in force with no end date, which is the standing of the Journal text rather than of the UN Regulation behind it. The page says as much above the text: “Only the original UN/ECE texts have legal effect under international public law”, and the status and date of entry into force “should be checked in the latest version of the UN/ECE status document TRANS/WP.29/343”. That status document was not opened here; what follows is the 02 series as the Journal prints it.

What the scope sentence covers, and what it leaves out

Both halves of the sentence are defined one document away, and R66 says which one. Paragraph 1.1 ends in a footnote marker, and footnote 1 reads: “As defined in Annex 7 to the Consolidated resolution on the construction of vehicles (R.E.3), (document TRANS/WP.29/78/Rev.1/Amend.2 as last amended by Amend.4).” One reference, carrying the categories and the classes together. R.E.3 is a UN document this page did not open, so the definitions used below are taken from two instruments that carry the same terms and are cited here in full. Article 4(1)(a) of Regulation (EU) 2018/858 makes M2 a passenger vehicle with more than eight seating positions besides the driver and a maximum mass not exceeding 5 tonnes, M3 the same seat count above 5 tonnes. UN Regulation No. 107 sets out the classes at paragraphs 2.1.1 and 2.1.2, published at OJ L, 2026/139 of 29 January 2026 with the 11 series of amendments incorporated and read in full in bus classes. Reading R66’s scope through those two is ours: R66 refers to neither.

The line is not simply seated against standing. Class II is inside and carries standees, but paragraph 2.1.1.2 caps its standing area at the gangway and/or the space of two double seats. Neither excluded class carries a cap of that kind in its definition: Class I is constructed with areas for standing passengers to allow frequent movement, and Class A must have provision for standing passengers. Reading the omission through that difference is ours; R66 gives no reason for it.

And a class is not a vehicle. R107 paragraph 2.1.1.4 reads: “A vehicle may be regarded as belonging in more than one Class. In such a case it may be approved for each Class to which it corresponds.” The exclusion therefore bites on a bus whose only class is Class I. One that also corresponds to Class II may be approved for that class as well, and once it is, it is a single-deck Class II vehicle of category M2 or M3 with more than 16 passengers — inside paragraph 1.1 on the face of the sentence, with no request from anyone. The same paragraph sits under 2.1.1, the group above 22 passengers, and 2.1.2 sets out Classes A and B without a counterpart to it; reading that silence as leaving Class A no comparable route in is ours.

Where no second class is available, the exclusion is still a default rather than a bar. Paragraph 1.2 reads: “At the request of the manufacturer, this Regulation may also apply to any other M2 or M3 vehicle that is not included in paragraph 1.1.” A city bus that corresponds to Class I and nothing else can therefore hold an R66 approval; nothing obliges it to, and the absence of the mark on one is not evidence of anything.

The double-deck exclusion is the oddest, because R66 is fluent in double-deckers it does not cover. Paragraph 2.5 defines a double-deck vehicle; paragraph 2.32 adds that “in the case of a double deck coach” it is the cantrail of the upper deck that hits the ground first, and 2.33 says the same of the waistrail. The vocabulary is in the definitions; the vehicle is not in the scope. R107, by contrast, opens by applying to “every single-deck, double-deck, rigid or articulated vehicle of category M2 or M3”.

The EU list gives a category, not a class

Article 4(2) of Regulation (EU) 2019/2144 makes type-approval under a UN Regulation listed in its Annex I count as EU type-approval. Row 66 of that Annex reads: subject, “Strength of the superstructure of large passenger vehicles”; series, 02; reference, OJ L 84, 30.3.2011, p. 1. Its last column is headed “Scope covered by the UN Regulation” and contains two entries — M2, M3. Annex II repeats the shape at item F15, “Bus strength of superstructure”, with the letter A in the M2 and M3 columns and nothing anywhere else. The notes to that table give A in full as the “Date for the prohibition of the registration of vehicles, as well as the placing on the market and entry into service of components and separate technical units: 6 July 2022” — two limbs, whole vehicles and separately marketed parts, not registration on its own. The note carries no compliance qualifier; that is in Article 16, whose point (b) has national authorities prohibit registration from the Annex II date where the vehicles “do not comply with the requirements of this Regulation”.

Read alone, that row looks like a statement that every M2 and M3 bus is rollover-approved. It is not. The EU tables index by category and leave the Regulation to define its own reach, so the class filter lives one document away, in R66 paragraph 1.1.

Residual space is the whole of the requirement

Paragraph 2.14 defines residual space as “a space to be preserved in the passengers’, crew and driver’s compartment(s) to provide better survival possibility for passengers, driver and crew in case of a rollover accident”. Paragraph 5.1 states the requirement in one sentence: the superstructure shall have sufficient strength to ensure that the residual space during and after the rollover test is unharmed. Both words bind — a structure that springs back has still failed if it entered the space on the way.

Two sub-paragraphs say what “unharmed” means. Under 5.1.1 nothing outside the space at the start — pillars, safety rings, luggage racks — may intrude during the test, while parts originally inside it, such as vertical handholds, partitions, kitchenettes and toilets, are ignored. Under 5.1.2 no part of the residual space may project outside the contour of the deformed structure, drawn between every adjacent window and/or door pillar as straight lines joining the inside contour points that stood at the same height above the floor before the test.

The space itself is a moving cross-section. Paragraph 5.2.1 puts the SR point on the seat-back of each outer forward or rearward facing seat, 500 mm above the floor under the seat and 150 mm from the inside surface of the side wall, with no account taken of wheel arches or other variations in floor height. Paragraph 5.2.3 closes the ends: a vertical plane 200 mm behind the SR point of the rearmost outer seat, or the inner face of the rear wall where that is nearer, and one 600 mm in front of the SR point of the foremost seat — passenger, crew or driver — at its fully forward adjustment.

Manufacturers translate the term. Mercedes-Benz Buses says of the Tourismo — a touring coach of the kind the definitions put in Class III, though that reading is ours and the page states no class — that the Regulation specifies “the exact ‘survival space’ which must be guaranteed by the structural design in the event of an accident”. Survival space is not the Regulation’s word; residual space is, and paragraph 2.14 is where the two meet.

One requirement, five ways to prove it

The basic method is physical. Under paragraph 5.3 the complete vehicle stands on a tilting platform with its suspension blocked and is tilted slowly to its unstable equilibrium position; the roll starts there at zero angular velocity about the wheel-ground contact points, into a ditch of 800 mm nominal depth — 800 ± 20 mm under Annex 5 — with a dry, smooth concrete floor and every door and opening window closed but not locked. Paragraph 5.6 sends the vehicle over on whichever side is more dangerous for the residual space, and 5.6.3 names the side with less support from partitions, wardrobe, toilet or kitchenette.

Paragraph 5.4 then offers four equivalents at the manufacturer’s discretion: a rollover test on representative body sections, a quasi-static loading test of body sections, a quasi-static calculation based on component tests, and a computer simulation of the rollover. The escape hatch is 5.4.5 — where the chosen method cannot account for a special feature such as roof air-conditioning, the technical service may require the full test. Annex 7, which governs the quasi-static loading test of body sections, makes the target explicit at its paragraph 4.2.1: total energy ET = 0,75 MgΔh, distributed at 4.2.2 among the bays of the superstructure in the proportions of their masses. Annex 8, the calculation, restates the same formula at its paragraph 3.1. On an articulated vehicle, 5.5 requires each rigid section to meet 5.1 in its own right.

Fitting belts changes the mass the body is tested at

R66 has two test masses. Paragraph 2.15 defines unladen kerb mass Mk as the vehicle in running order plus 75 kg for the driver, fuel at 90 per cent of tank capacity, coolant, lubricant, tools and spare wheel. Paragraph 2.17 defines total effective vehicle mass Mt as Mk plus half the total occupant mass — k is 0,5 — where 2.16 counts only the occupants of seats fitted with occupant restraints and 2.18 fixes the individual occupant mass at 68 kg. Paragraph 5.3.1 chooses between them: a vehicle type without restraints is tested at Mk, one with them at Mt, the extra hung on each restrained seat under Annex 5 either as half the 68 kg or as a 68 kg anthropomorphic ballast on a two-point belt.

Paragraph 3.2.2.1 makes the reference energy the product of that mass, gravity and the centre-of-gravity height at the start of the roll. So a belted coach is approved against a heavier and more energetic vehicle than the same shell unbelted — a comparison of the Regulation’s own two definitions, and ours, not a figure printed in the text. Which vehicles have to carry belts in the first place is a separate question, set out in bus seat belts.

Whose approval it is

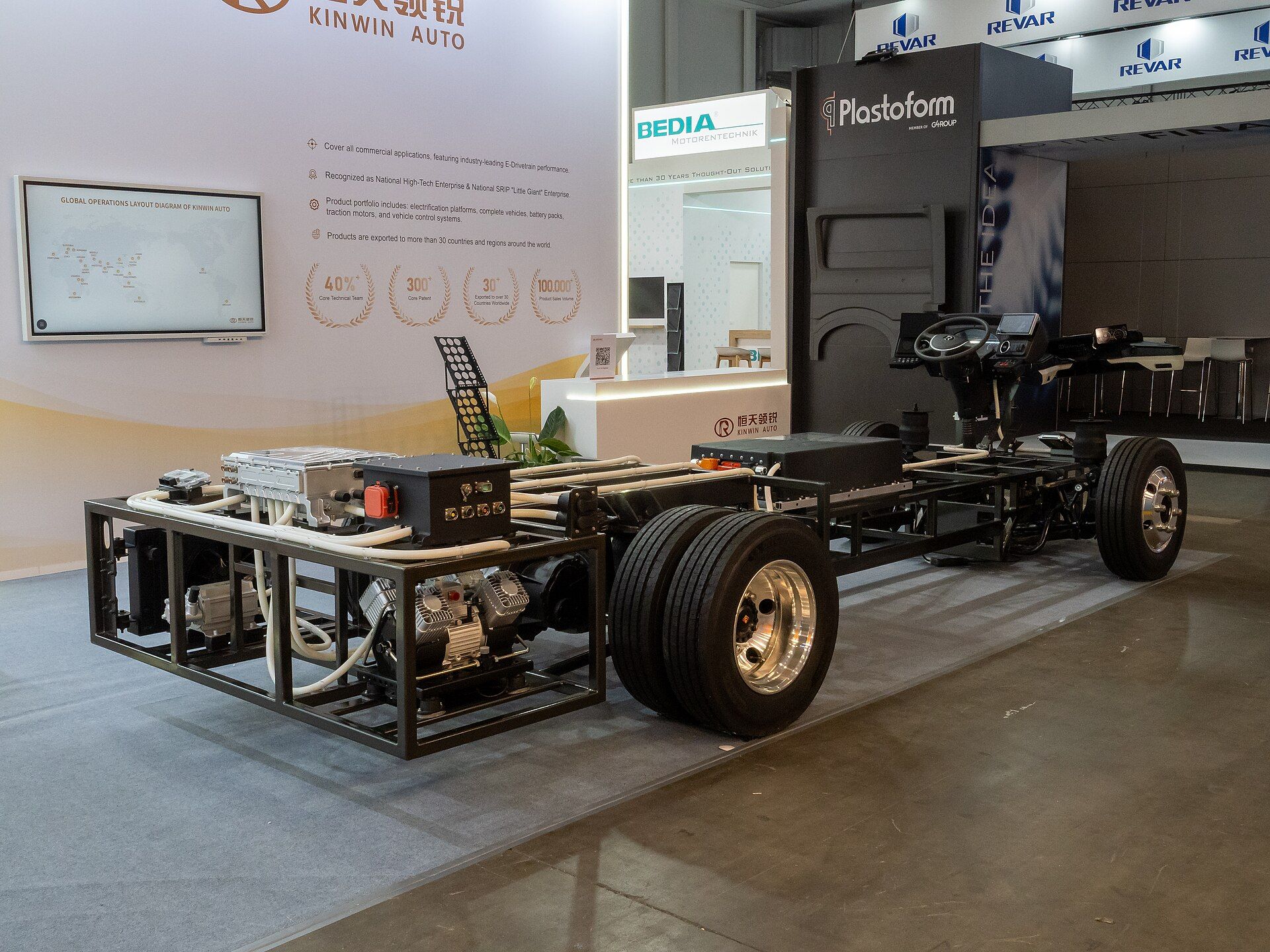

R66 does not test a chassis. Paragraph 2.24 defines the superstructure as the load-bearing components of the bodywork, “as defined by the manufacturer”, containing the parts that contribute to strength and energy absorption and preserve the residual space. Annex 4 requires that manufacturer to state which bays contribute, which connecting elements carry torsional stiffness, how mass is distributed among them and which elements count as rigid — at least two bays, one ahead of the centre of gravity and one behind. Paragraph 7.2 is blunt about the consequence: “Only those elements which are nominated by the manufacturer as part of the superstructure shall be checked.”

Where body and chassis came from different companies, the paperwork answers whose approval it is. R107 paragraph 2.2.1 treats bodywork manufacturer and chassis manufacturer as two separate essential aspects of a vehicle type, and 3.2 settles the naming: where a vehicle is approved as a chassis assembled with type-approved bodywork, “the term manufacturer refers to the assembler”. The R66 mark sits close to or on the vehicle data plate under 4.6, and 4.2 makes the first two digits of the approval number the series — 02 at present. Which is why the plate outranks the brochure: the body builder Irizar states on its i6S model page that the coach “complies with the R/66.02 safety regulation” while its own corporate safety page says its coaches comply with R66/01, and it sells that body both as an integral vehicle and onto chassis built by others. Read that plate alongside the documents in buying a used coach and the specification points in how to read a coach data sheet.

What the EU rule used to be

The European Union once had its own rule. Directive 2001/85/EC carried Annex IV, “Strength of superstructure”, whose paragraph 1 read: “This Annex applies to all single deck Class II and III vehicles.” Its paragraph 3 already deferred, treating a superstructure approved under UN R66 as compliant with the Annex.

That Directive is not law and has not been for years. EUR-Lex records it as no longer in force with an end of validity of 31 October 2014, repealed by Regulation (EC) No 661/2009 — itself recorded as no longer in force from 5 July 2022, repealed by Regulation (EU) 2019/2144. Comparing the two scopes is ours: the repealed Annex reached single-deck Classes II and III, and the Regulation that inherited the ground adds class B above 16 passengers. Neither ever named Class I, Class A or a double-decker.

The transitional provisions remain live. Paragraph 10.9 lets Contracting Parties refuse first registration of a new vehicle not meeting the 02 series from 9 November 2017; 10.10 preserves approvals granted to the preceding series where the 02 series did not affect them.

One last detail. R107’s paragraph 1.1 reaches every single-deck, double-deck, rigid or articulated M2 or M3 vehicle, less the four kinds paragraph 1.2 carves out — secure transport of persons such as prisoners, ambulances, off-road vehicles and vehicles specially designed for the carriage of school children — and subject to 1.3, which applies the Regulation “only to the extent that they are compatible with their intended use and function” to two narrow kinds: police, security and armed-forces vehicles under 1.3.1, and under 1.3.2 vehicles containing seating intended solely for use when the vehicle is stationary but not designed to carry more than 8 persons excluding the driver when in motion — R107’s own examples there are mobile libraries, mobile churches and mobile hospitality units. That Regulation defines superstructure at paragraph 2.4 as “the part of the bodywork which contributes to the strength of the vehicle in the event of a roll-over accident”, and then sets no strength requirement for it anywhere. In the text published at OJ L, 2026/139 the words roll-over and R66 appear, respectively, once and not at all. That count is ours.
